RLWS 920i INDICATOR

Introducing the 920i...

The new 920i is the first programmable indicator/controller to blend revolutionary user interfaces, total flexibility and ultimate processing performance with the simplicity of a basic weight indicator.



  The 920i combines the power of three advanced features to accurately process data faster than any other.
bulletThe industry's fastest analog-to-digital conversion factor. At 960 updates per second, the 920i receives weight data three times faster than other programmables. This feature ensures faster processing in batching, filling and multi-scale operations.
bulletThe 920i uses a next-generation microprocessor that tears through programs in record time. The code is fully-compiled so that even the most complex programs won't slow your system.
bulletFinally, the 920i incorporates technology called ESP—Event Sequential Protocol. Similar to modern computer processing, events are identified, prioritized and executed by handlers with unprecedented efficiency.


  The 920i's modular design allows you to choose only the options necessary for your current application, yet leaves freedom to expand in the future. Whether your process requires multiple scales or connection to other peripherals, the 920i offers the most communication protocols to get the job done:
bulletUp to 28 A/Ds (scales) and 32 channels
bullet100 setpoint steps
bulletUp to 32 serial ports
bulletUp to 340 digital I/O
bulletUp to 14 analog outputs
bulletUp to 14 pulse inputs
bulletEasily integrated into new or existing industrial automation systems
bulletProvides open connectivity with popular networking systems like Allen-Bradley's remote I/O, DeviceNet, Profibus DP and Ethernet







AND HLWP SERIES















HLWP SERIES

Features

bulletIP65/NEMA-4X
bulletStainless Steel Construction
bullet1/3000 high resolution
bulletPortable
bulletStability Indicator
bulletClear LCD display
bulletAuto Power Off
bulletTare Function
bulletNTEP APPOVED
(some models)





Capacity

Resolution

Pan Size

Price



HL-300WP

300g/10.58oz

0.1g/0.01oz

128 mm/5" square





HL-1000WP

1000g/35.28oz/2.2lb/2lb,9.8oz

0.5g/0.1oz

128 mm/5" square





HL-3000WP

3000g/105.8oz/6.6lb/6lb,9.8oz

1g/0.1oz

128 mm/5" square





*HL-3000WPN

3000g/105.8oz/6.6lb

1g/0.1oz

128 mm/5" square





HL-3000LWP

3000g/105.8oz/6.6lb/6lb,9.8oz

1g/0.1oz

170x137mm/ 6.8x5.4"





*HL-3000LWPN

3000g/105.8oz/6.6lb

1g/0.1oz

170x137mm/ 6.8x5.4"

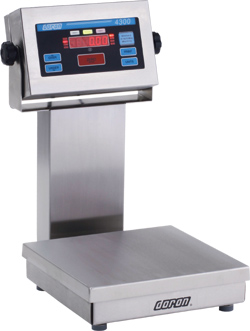

DORAN 4300 CHECKWEIGHER





Standard Features



bulletNew low profile "Quad-Spring" shockproof base - only 2" high!
bulletBright color coded Over, Under & Accept checkweigh indicators.
bulletExclusive "STABIL-IZER" software filter eliminates "bouncy display" caused by vibrations or air movement near the scale.
bulletBigger brighter display - easy to read from as far as 25 feet away.
bullet3 or 5 band checkweigh capability.
bulletDisplays in lb, kg, oz, or lb&oz
bulletWashdown Safe
bulletUSDA Approved and NTEP Certified
bullet2 Year Warranty



Specifications



bulletMax. Capacities: 5 lb(2.3 kg) to 200 lb(91 kg)
bulletPlatform Sizes: 10" x 10", 12" x 12"
or 15" x 15"
bulletPower: 115 VAC (50/60HZ, 10 watts)
bulletEMI/ESD Protected
bulletNTEP: nmax = 5000d


Four times thicker than the competition, our "Guardian" touch panel resists moisture and puncture damage better than any other scale.

Collect data across your computer network with the washdown safe Ethernet option. Available in either wired or wireless, this new option provides the ability to monitor, control, and analyze your Model 4300 Checkweigher from a PC on the network.



Options

bulletStainless Steel load cell
bullet230 VAC operation
bulletRemote zero switch
bulletSerial data output

Excel Series
Advanced Capability
Features and Options

Communications Interface

bulletProgrammable, Bi-directional RS-232 Interface
bullet
Optional Interfaces: RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (Wired or Wireless - 802.11b), User definable data output

Optional Setpoints

bulletUp to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs

Advanced Features

bulletAccumulator, Counter, Grading Scale, and Peak & Hold - Standard
bullet
Rechargeable Battery Option
