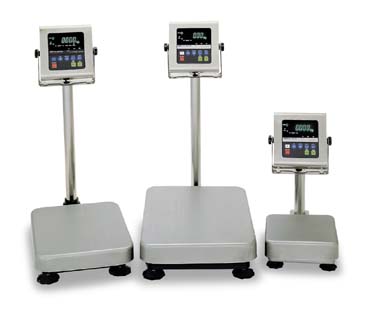

AND HV-WP BENCH SCALE
FEATURES:
 | Preset Tare |
| Comparator Function |
| Comparator Buzzer with OP-03 |
| Setpoint Control for Simple Batching |
| Multiple Weighing Units and Modes |
| Hold Function |
| Counting and Percentage Modes |
| M+ Function for totaling weighing data |
| Adjustable & Detachable Stainless Steel Display |
| Tilting Meter Head |
| Compatible with the AD-8121 Printer |
| Standard RS-232C Interface |
ACCESSORIES:
HVWP-02 Display Extension Cable (17")
HVWP-03 RS-232C & Comparator/Setpoints (relays & audio)
HVWP-04 RS-422/485 & Comparator/Setpoints (relays)
HV/W-16SRC Rigid Caster for 30 lb & below capacities (each)
HV/W-16SSC Swivel/Lock Caster for 30 lb & below capacities
(each)
HV/W-17LRC Rigid Caster for above 30 lb capacities (each)
HV/W-17LSC Swivel/Lock Caster for above 30 lb capacities (each)
SPECIFICATIONS:
| |
HV-15KWP |
HV-60KWP |
HV-200KWP |
| Capacity (kg) |
3 |
6 |
15 |
15 |
30 |
60 |
60 |
150 |
220 |
| Resolution (kg) |
0.001 |
0.002 |
0.005 |
0.005 |
0.01 |
0.02 |
0.02 |
0.05 |
0.1 |
| Capacity (lb) |
6 |
15 |
30 |
30 |
60 |
150 |
150 |
300 |
500 |
| Resolution (lb) |
0.002 |
0.005 |
0.01 |
0.01 |
0.02 |
0.05 |
0.05 |
0.1 |
0.2 |
| Capacity (oz) |
96 |
240 |
480 |
480 |
960 |
2400 |
2400 |
4800 |
8000 |
| Resolution (oz) |
0.05 |
0.1 |
0.2 |
0.2 |
0.5 |
0.1 |
1 |
2 |
5 |
| Capacity (lb-oz) |
30 |
not
available |
not
available |
| Resolution (lb-oz) |
0.1 |
| Max. Count |
15,000 pieces |
12,000 pieces |
11,000 pieces |
| Operating Temp. |
-10°C ~ +40°C/+14°F ~ +40°F RH <
85% |
| Linearity (g) |
±1 |
±2 |
±5 |
±5 |
±10 |
±20 |
±20 |
±50 |
±100 |
| Display |
7-segment vacuum fluorescent
display, character height = 20mm |
| Pan Size |
mm |
250 x 250 |
330 x 424 |
390 x 530 |
| in |
9.8 x 9.8 |
13.0 x 16.7 |
15.4 x 20.9 |
| Dimensions W x D x H |
mm |
250 x 466 x 437 |
330 x 615 x 786 |
390 x 700 x 786 |
| in |
9.8 x 18.3 x 17.2 |
13.0 x 24.2 x 30.9 |
15.4 x 27.6 x 30.9 |
| Power |
AC 110 ~ 120 VAC, 60 Hz |
| Weight (approx.) |
8kg / 17.6lb |
13kg / 28.7lb |
19kg / 41.9lb |
|
