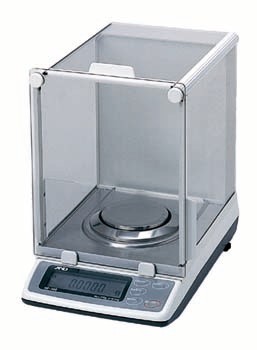

AND HR SERIES BALANCE
Features:
 | HR-60 is legal-for-trade, class II |
| Large Weighing Chamber holds up to a 250mm volumetric
flask Wide Angle LCD Display |
| Good Laboratory Practices [GLP] Software |
| Multi-Functional Weighing: %, Counting, Grams, mg. oz
ozt, dwt, ct, mom, GN, t, TL |
| Separate, Clearly Marked Operating Keys |
| Full Range Tare |
| Range Key: Suppresses least significant digit for
faster speed & better stability when required |
| Percentage Function |
| Counting Function: Maximizes accuracy with Automatic
Counting Accuracy Improvement Function [ACAI] |
| Push Button Calibration |
| Front Key Selectable Weighing Filters: Ensures fast &
stable results in all environmental conditions without
switching off the balance |
| Digital Tare |
| Outputs Serial Number of the Balance: Identifies
stolen balance & greatly reduces capital goods inventory
control |
| Enter balance's ID Number: For GLP records &
identifying the balance |
| System Diagnosis: Identifies Overload, Weighing Pan
Error, Power Failure, Digital Tare Error, Calibration
Errors & Low Battery |
| Body & frame constructed of extra strong die-cast
aluminum alloy |
| Optional Battery Pack |
| Percentage and Counting Modes |
| Digital Preset Tare |
| One Touch Printing |
| Last Digit Suppression |
| Standard Underhook |
| GLP/LIMS/ISO Compliant |
|
|
|
|
|
Accessories:
AD-1682 Rechargeable Battery
Pack
CC:103E Carrying Case for HM Series
HR-03 Serial Interface (RS-232C)
HR-05 20mA Current Loop Interface
HR-09 NiCd Battery Pack for HR-60, HR-60C, HR-120, HR-120-C,
HR-200, HR-200-C only
AD-100-2 Anti-Theft Device
AD-8920 Universal Remote Display
AD-1653 Density Determination Kit
TB:110 AC Adapter (120V) Standard with Unit
TB:123 AC Adapter (220V)
AD-1682 Rechargeable Battery Pack
AD-1682 Rechargeable Battery Pack
SPECIFICATIONS:
|
Capacity/Resolution |
HR-60 |
HR-120 |
HR-200 |
HR-300i |
HR-202i |
| Gram |
(g) |
60x0.0001 |
120x0.0001 |
210x0.0001 |
320x0.0001 |
220x0.0001/51x0.00001 |
| (mg) |
60000x0.1 |
120000x0.1 |
210000x0.1 |
320000x0.1 |
220000x0.1/51000x0.01 |
| Decimal Ounce (oz) |
2.1x0.000005 |
4.2x0.000005 |
7.4x0.000005 |
11.29x0.00001 |
7.76x0.00001/1.8x0.000001 |
| Troy Ounce (ozt) |
1.9x0.000005 |
3.8x0.000005 |
6.7x0.000005 |
10.3x0.00001 |
7.07x0.00001/1.64x0.000001 |
| Pennyweight (dwt) |
38x0.0001 |
77x0.0001 |
135x0.0001 |
199x0.0001 |
141.5x0.0001/32.8x0.00001 |
| Carat (ct) |
300x0.001 |
600x0.001 |
1050x0.001 |
1550x0.001 |
1100x0.001/255x0.0001 |
| Momme (mom) |
16x0.00005 |
32x0.00005 |
56x0.00005 |
82x0.0001 |
58.7x0.0001/13.6x0.00001 |
| Grain Unit (GN) |
925x0.002 |
1851x0.002 |
3240x0.002 |
4784x0.002 |
3395x0.002/787x0.0002 |
| Tola (t) |
5x0.00001 |
10x0.00001 |
18x0.00001 |
26x0.00001 |
18.8x0.00001/4.37x0.000001 |
| Tael (TL) |
1.5x0.000005 |
3.1x0.000005 |
5.5x0.000005 |
8.2x0.00001 |
5.87x0.00001/1.36x0.000001 |
| Percentage Min Div |
0.01%, 0.1% or 1% (auto prompt) |
| Counting Min Weight |
0.1 mg |
| Linearity |
|
±0.0002 g |
|
0.0002 mg |
0.0001/0.00002 g |
| Repeatability/Std Dev |
|
0.0001 g |
|
±0.0003 mg |
±0.0002/±0.00003 g |
| Stabilization Time |
|
3 seconds (typically) |
|
Approx. 3.5 seconds |
Approx. 3.5/8 seconds |
| Sensitivity Drift (10°C-30°C) |
±2ppm/°C (when automatic self
calibration is not used) |
| Display Refresh |
5 times per second/10 times per
second |
| Pan Size |
Ø 85 mm/3.3 inches |
Ø 90 mm/3.6 inches |
| Physical Dimensions |
(mm) |
213(W) x 319(D) x 301(H) |
217(W) x 442(D) x 316(H) |
| (in) |
8.4(W) x 12.6(D) x 11.9(H) |
8.54(W) x 17.4(D) x 12.24(H) |
| Breeze Break Dimensions |
(mm) |
180(W) x 192(D) x 200 H) |
164(W) x 148.5(D) x 251(H) |
| (in) |
7.1(W) x 7.5(D) x 7.9(H) |
6.45(W) x 5.84(D) x 9.88(H) |
| Operating Temperature |
5C to 40C (41 F to 104 F), 85% RH
or less (no condensation) |
| Weight |
Approximately 5.7 kg/12.5 lb |
Approximately 8.0 kg/17.6 lb |
| Power |
100, 120, 220, 240 VAC (AC
Adaptor) 50 Hz/60 Hz
10 hours continuous operation with rechargeable battery pack |
100, 120, 220, 240 VAC (AC
Adapter)
50 Hz/60 Hz, 11 VA |
| Standard Accessories |
Manual, AC Adapter, Protective
Cover |
WinCT in CD-ROM, Manual, AC
Adapter |
| Ext. Cal. Mass (optional) |
50 g |
100 g |
200 g |
300 g/200 g/100 g |
200 g/100 g/50 g/20 g |
|
