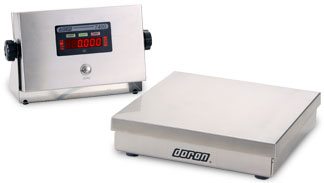

DORAN 7400 SERIES BENCH SCALE






Standard Features



bulletStainless steel covered pushbutton.
bulletZero Band Checkweighing is an included feature with OVER-ACCEPT-UNDER indicators.
bulletOverload Protection is maximized with the "Quad Spring" shock resistant design.
bulletThe 304 Stainless Steel construction ensures easy cleanability and long life.
bulletAn innovative gasket design have been combined to allow the 7400 indicator to meet the stringent NEMA 4X and IP69K classifications for washdown protection.
bulletNTEP Certified.
bulletDisplays in lb, kg, oz, or lb&oz
bulletBright red LED display
bulletWashdown Safe
bulletAll Electronic
bullet2 Year Warranty





Specifications

bulletMax. Capacities: 2 lb to 200 lb
bullet Platform Sizes: 10" x 10", 12" x 12"
or 15" x 15"
bulletPower: 115 VAC (50/60HZ, 10 watts)
bulletEMI/ESD Protected
bulletNTEP: nmax = 5000d

Options







bulletStainless Steel load cell
bullet14", 20", and 30" Atlas Column
bullet230 VAC operation
bulletUNITS or PRINT switch
bulletSerial data output

Excel Series
Advanced Capability
Features and Options

Communications Interface

bullet Programmable, Bi-directional RS-232 Interface
bullet
Optional Interfaces: RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (Wired or Wireless - 802.11b), User definable data output

Optional Setpoints

bulletUp to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs

Advanced Features

bulletGrading Scale and Peak & Hold - Standard
bullet
Rechargeable Battery Option
bulletDimension setup and communications Windows software.
