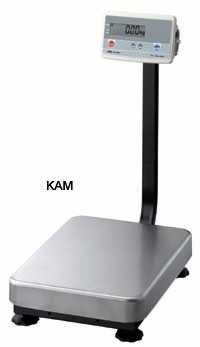

AND FG-K SERIES BENCH SCALE



FEATURES:

bulletEasy to operate and clean
bulletOne second response time
bulletThree weighing resolution
bulletAC or battery operation
bulletStainless steel weigh pan
M models (300 x 380mm)
L  models (390 x 530mm)
bullet(KAM) with column
(KBM) without column
bulletFull scale pushbutton tare

ACCESSORIES:

FG-23 RS-232C Interface
FG-24 Comparator/Set Point Relay Outputs
FG-25 Display Wall Mount Bracket
FG-26 Carrying Handle
FV-05 AC Adaptor (110V)


SPECIFICATIONS:


  FG-30KAM
FG-30KBM
FG-60KAM
FG-60KBM
FG-150KAM
FG-150KBM
FG-60KAL FG-150KAL
Weight capacity (kg) 30 60 150 60 150
Min. display (kg) 0.01 0.02 0.05 0.02 0.05
  0.005* 0.01* 0.02* 0.01* 0.02*
  0.002 0.005 0.01 0.005 0.01
Weight capacity (lb)** 60 150 300 150 300
Min. display (lb)** 0.02 0.05 0.1 0.05 0.1
  0.01* 0.02* 0.05* 0.02* 0.05*
  0.005 0.01 0.02 0.01 0.02
Weight capacity (oz)** 960 2400 4800 2400 4800
Min. display (oz)** 0.5 1 2 1 2
  0.2* 0.5* 1* 0.5* 1*
  0.1 0.2 0.5 0.2 0.5
No. of samples (can be changed to 10, 20, 50 or 100 ) pieces
Max. counts 120,000 pcs 96,000 pcs 120,000 pcs 96,000 pcs 120,000 pcs
Min. unit weight 0.25 g 0.625 g 1.25 g 0.625 g 1.25 g
Repeatability (Std. deviation) 0.05 kg 0.01k g 0.02 kg 0.01 kg 0.02 kg
Linearity error 0.01 kg 0.02 kg 0.05 kg 0.02 kg 0.05k g
Sensitivity drift 20 ppm /C (10 C~30 C / 50 F~86 F)
Display 7 segment LCD display (Character height 26 mm)
Display update 10 times per second
Operating temp -10 C~40 C / 14 F~104 F, less than 85% RH (no condensation)
Power supply AC adapter or C size (R14P / LR14) x 4 batteries
Battery operating Approximately 150 hours with alkaline dry cell battery
Weighing pan size 300 x 380 mm / 11.8 x 15.0 inches 390 x 530 mm / 15.4 x 20.9 inches
Dimension FG-KAM: 300(W) x 624(D) x 781(H) mm
FG-KBM: 380(W) x 464(D) x 118(H) mm
390(W) x 771(D) x 781(H) mm
Weight (approximately) FG-KAM: 11.2 kg / FG-KBM: 9.7 kg 16.4 kg
Calibration weight (Factory setting) 30 kg / 60 lb 60 kg / 150 lb 150 kg / 300 lb 60 kg / 150 lb 150 kg / 300 lb

* Factory setting
** U.S.A. version only
