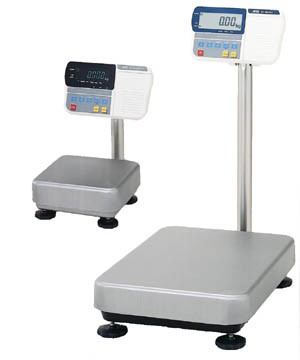

AND HV-G SERIES BENCH SCALE

FEATURES:

bulletComparator for setting high and low weight targets
bulletOptional comparator buzzer for selected settings
bulletSetpoint control for simple batching
bulletTilting meter head for best viewing angle
bulletRS-232C interface to connect with printer or PC
bulletCounting and percent functions
bulletM+ function for totaling weighing data
bulletWater and dust resistant

ACCESSORIES:

Accessories (Common to all HVG Series)
AD-8920
Universal Remote Display
FV-05 AC Adapter (110V)
FV-06 AC Adapter (220V)
FG-01 Display Wall Mounting Kit
HVWP-02 Display Extension Cable (17")
AD-8951 Comparator Light (Consult Factory for RS-232C Cable)
HV/HW-03G Comparator/Setpoint Relay Outputs w/ RS-232C
HV/W-04G RS-422/485 Interface
HV/W-06G Built-in Printer for HV-GV & HW-GV models
HV/W-16SRC Rigid Caster for 30 lb & below capacities (each)
HV/W-16SSC Swivel/Lock Caster for 30 lb & below capacities (each)
HV/W-17LRC Rigid Caster for above 30 lb capacities (each)
HV/W-17LSC Swivel/Lock Caster for above 30 lb capacities (each)

SPECIFICATIONS:

HV-G Series Specifications
(GL Series has a Liquid Crystal Display (LCD) & GV Series has a Vacuum Fluorescent Display (VFD))
  HV-15KGL / GV HV-60KGL / GV HV-200KGL / GV
Capacity (kg) 15 6 3 60 30 15 220 150 60
Resolution (kg) 0.005 0.002 0.001 0.02 0.01 0.005 0.1 0.05 0.02
Capacity (lb) 30 15 6 150 60 30 500 300 150
Resolution (lb) 0.01 0.005 0.002 0.05 0.02 0.01 0.2 0.1 0.05
Capacity (oz) 480 240 96 2400 960 480 8000 4800 2400
Resolution (oz) 0.2 0.1 0.05 1 0.5 0.2 5 2 1
Capacity (lb-oz) 30 - - - - - -
Resolution (lb-oz) 0.1 - - - - - -
Max. Count 15,000 pieces 12,000 pieces 11,000 pieces
Operating Temp. -10C ~ 40C / 14 F ~ 104 F
Linearity 5g 2g 1g 20g 10g 5g 100g 50g 25g
PanSize (mm) 250(W) x 250(D) mm 330(W) x 424(D) mm 390(W) x 530(D) mm
Pan Size (inch) 9.8(W) x 9.8(D) inches 12.95(W) x 16.69(D) inches 15.35(W) x 20.87(D) inches
Physical Dim. (mm) 275(W) x 474(D) x 368(H) 330(W) x 621(D) x 771(H) 390(W) x 712(D) x 773(H)
Physical Dim. (inch) 10.8(W) x 18.7(D) x 14.5(H) 13.0(W) x 24.4(D) x 30.4(H) 15.4(W) x 28.0(D) x 30.4(H)
Power GL Series: AC Adapter or 6 'D" size alkaline batteries (600 hours)
GV Series: AC Mains only
Weight (approx.) 6 kg / 13.2 lb 11 kg / 24.3 lb 17 kg / 37.5 lb
Standard Accessories AC Adapter (for GL Series only), Display Cover and Manual
