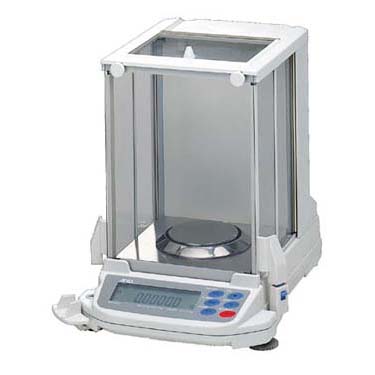

AND GR SERIES LAB BALANCE

Features:

bulletRequires 30% less footprint space
bulletFully Automatic Self-Calibration
bulletOne Touch Calibration
bulletEasy Access Door
bulletSplash Proof Keyboard and Display
bulletData Memory Function--Store up to 200 measurements
bulletTwo Layer Housing Construction
bulletAdvanced Stabilization Software
bulletAutomatic Adjustable Environment Setting
bulletMultiple Weighing Units GLP Compliance
bulletStandard RS-232C allows bidirectional communication with PC
bulletStandard Underhook
bulletQuick Reference Card
bulletBundled with A&D's new WinCT Software

Accessories:
AD-1682 Rechargeable Battery Pack
AD-100-2 Anti-Theft Device
AD-8920 Universal Remote Display
AD-1653 Density Determination Kit
SW:128 Foot Switch
TB:110 AC Adapter (120V) Standard with Unit
TB:123 AC Adapter (220V)
AD-1682 Rechargeable Battery Pack
AD-1682 Rechargeable Battery Pack


SPECIFICATIONS:

Capacity/Resolution GR-120 GR-200 GR-300 GR-202
Gram (g) 120x0.0001 210x0.0001 310x0.0001 210x0.0001/42x0.00001
(mg) 120000x0.1 210000x0.1 310000x0.1 210000x0.1/42000x0.01
Decimal Ounce (oz) 4.2x0.00001 7.4x0.00001 10x0.00001 7.4x0.00001/1.4x0.000001
Troy Ounce (ozt) 3.8x0.00001 6.7x0.00001 9.9x0.00001 6.7x0.00001/1.3x0.000001
Pennyweight (dwt) 77x0.0001 135x0.0001 199x0.0001 135x0.0001/27x0.00001
Carat (ct) 600x0.001 1050x0.001 1550x0.001 1050x0.001/210x0.0001
Momme (mom) 32x0.0001 56x0.0001 82x0.0001 56x0.0001/11x0.00001
Grain Unit (GN) 1851x0.002 3240x0.002 4784x0.002 3240x0.002/648x0.0002
Tola (t) 10x0.00001 18x0.00001 26x0.00001 18x0.00001/3.6x0.000001
Tael (TL) 3.1x0.00001 5.5x0.00001 8.2x0.00001 5.5x0.00001/1.1x0.000001
Percentage Min Div 0.01%
Counting Min Weight 0.1 mg
Linearity ±0.0002 g ±0.0002 g ±0.0002 g ±0.0002/±0.00003 g
Repeatability/Std Dev 0.0001 g 0.0001 g 0.0001 g 0.0001/0.00002 g
Stabilization Time 3.5 seconds 3.5 seconds 3.5 seconds 3.5/8 seconds
Sensitivity Drift (10°C-30°C) ±2ppm/°C (10°C ~ 30°C/50°F ~ 86°F)
Display Refresh 5 times per second/10 times per second
Pan Size Ø 85 mm/3.3 inches
Physical Dimensions (mm) 249(W) x 330(D) x 327(H)
(in) 9.8(W) x 12.99(D) x 12.87(H)
Breeze Break Dimensions (mm) 178(W) x 160(D) x 233(H)
(in) 7.01(W) x 6.5(D) x 9.17(H)
Operating Temperature 5°C ~ 40°C/41°F ~ 104°F RH less than 85%
Weight Approximately 6.0 kg/13.2 lb
Power 100, 120, 220, 240 VAC (AC Adapter) 50 Hz/60 Hz, 11VA
Standard Accessories Manual, AC Adapter, Reference Card
Ext. Cal. Mass (optional) 50 g/100 g 100 g/200 g 200 g/300 g 100 g/200 g
